JUAL ATTEN ADS1102CML DIGITAL STORAGE OSCILLOSCOPE ( 100Mhz )

ATTEN ADS1102CML DIGITAL STORAGE OSCILLOSCOPE ( 100Mhz )

Harga : Rp 12.750.000

Digital Storage Oscilloscope ATTEN ADS1102CML 220V

The most powerful portable digital oscilloscope at present, the perfect combo with top performance and powerful function, which represent the highest level presently available in digital storage oscilloscopes.

ADS1000 series digital storage oscilloscopes combine mature and steady hardware configuration, high-powered digital signal processing technology and functionality concepts with a mainstream display interface and the operation panel. In our design we did not attempt to match the specifications and usability of other comparable products currently on the market, but rather to exceed them in every respect, often outperforming same level products internationally.



Features:

• ADS1000 series digital storage oscilloscopes contains ADS1102CML, ADS1152CML, ADS1062CAL, ADS1202CE, ADS1302CE, ADS1102CE, ADS1062CML, ADS1062CE, , ADS1202CML, ADS1042CML.
• Dual channel - channel bandwidth: 25MHz, 60MHz, 100MHz, 150MHz
• The volume exquisite and it is convenient for carrying
• Use Colored TFT LCD, the waveform display is clearer and stable
• The real time sampling rate is 500MSa/
• Memory depth of ADS1000 is 4K and that of ADS1000M is 2M
• Trigger Modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger modes
• Front and Back USB Host/Device, GPIB
• Unique Digital Filter function and Waveform recorder function
• Waveform recorder function
• Pass/Fail function
• Thirty two parameters Auto measure function
• Cursor measure covers Manual mode, Track mode and Auto mode
• Channel waveform and it's FFT waveform display on split screen
• Pop-up Menu display pattern is more convenient for users using it
• Multiple Language User Interface
• Support multilingual online help

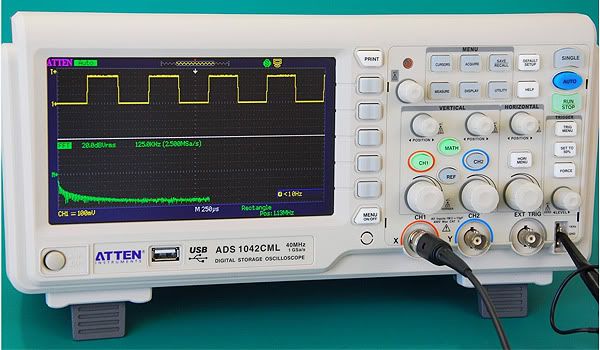

Closer Look:

Specifications:

Brand: Atten
Gross Weight: 2.4lb

SKU: STINF-0-0004

The Common Specifications Of All ADS1000 Series Products
Display	12 divides full screen display
Channels	2
Vertical Sensitivity	2mv-5v/div(1-2-5 Sequence£©
Vertical Resolution	8bit
Input coupling	DC, AC, GND
Input Max voltage	400V£¨Vpp£©
Trigger Types	Edge, Pulse, Video, Slope, Alternative, Delay
Trigger Modes	Auto, Normal, Single
Trigger Source	CH1, CH2, Ext, Ext/5, AC Line
Save/Recall	Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function
Auto Measure Types	Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Cursor measure	Manual, Track, Auto
Sample Types	Real Time, Equivalent Time
Averages	4, 16, 32, 64, 128, 256
Math	+, -, *, /, Invert
FFT	Window: Hanning, Hamming, Blackman¡¢Rectangular Sampling Points: 1024 points
XY Mode	Phase Error: ±3 degrees Support the sampling rate : 5KSa/s¡«200MSa/s (in a 1-2-5 sequence)
Persist	Off, 1sec, 2sec, 5sec, Infinite
Display Model	Main, Window, Window Zoom, Roll, X-Y
Menu Display	2Sec, 5Sec, 10Sec, 20Sec, Infinite
Skin	Classical, Modern, Tradition, Succinct
Display Language	Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean
Power Source Voltage	100-240VAC¡¢47HZ-440HZ¡¢50VA Max
Size and Weight	305mm x 154mm x133mm, about2.3kg
USB Host	Support USB flash drive storage
USB Device	Support PictBridge compatible printers and PC Remote control RS-232



Package Includes:



• 1 x ADS1102CML Digital Oscillosopes
• 1 x USB Cable
• 1 x Power Cord
• 2 x Probes
